Building a DIY firewood rack doesn’t have to be expensive. Whether you’re organizing firewood for the upcoming season or simply want to keep your outdoor area tidy, these 4 free firewood rack plans offer budget-friendly, practical solutions. We’ve chosen designs that are easy to assemble using affordable materials, such as 2x4s, and provided all the necessary building plans. Better yet, two of these designs can be made for under $30!
Firewood Rack Plans Under $30 Built from 2x4s
A well-built firewood rack doesn’t need to cost a fortune. With these four free firewood rack plans, you’ll be able to store your logs neatly and stylishly while sticking to your budget. The best part? Three out of the four plans are made primarily from 2x4s, which are inexpensive and readily available at most hardware stores. Here’s how you can create your own firewood storage without overspending.
1. Outdoor Firewood Rack Built from Four 2x4s Only
This simple and affordable firewood rack is made from just four 2x4s. With overall dimensions of 4′ W x 4′ H x 16.5″ D, it provides enough space to store close to half a rick of firewood. This rack is perfect for keeping your firewood off the ground, making it easier to access and keep dry.
Total Cost: $25.85
Material Needed: Four 8′ pressure-treated 2x4s, screws.
Assembly Plan:
- Step 1: Build two 4’ high by 4’ wide vertical frames.
- Step 2: Connect the two vertical frames with four 12″ horizontal links.
- Step 3: Attach a 4’ horizontal link at the bottom for extra support.
Why It’s Great: Easy to build, uses minimal materials, and is perfect for anyone on a budget.

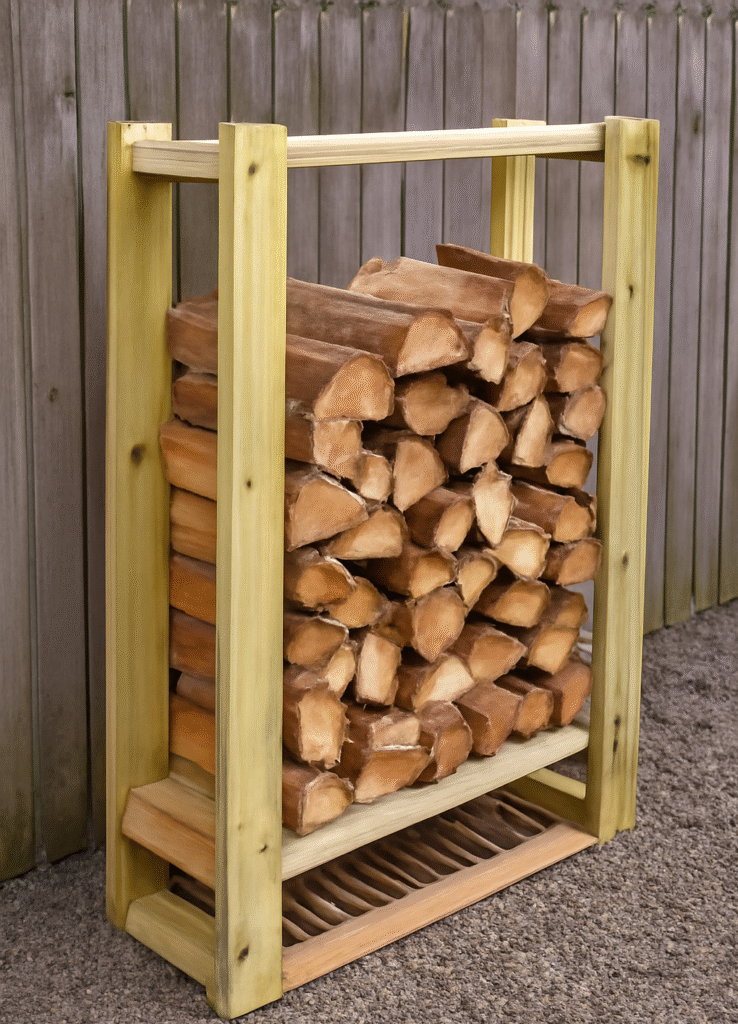

2. DIY Log Holder Plan Built with 2x4s and 4x4s
If you need more storage for your firewood, this plan combines 2x4s and 4x4s for added strength. The overall dimensions of this rack are 8′ W x 49.5″ H x 2′ D, providing plenty of space for one full rick of wood. It also features additional side planks to prevent smaller logs from falling through.
Total Cost: $50.16
Material Needed: One 8′ 2×4, two 8′ 2x6s, two 8′ 4x4s, one 10′ 1×6, screws.
Assembly Plan:
- Step 1: Construct two vertical frames using 4x4s and 2x6s for the rails.
- Step 2: Attach 1×6 cedar fence pieces as flooring, spaced 3 inches apart.
- Step 3: Assemble the frame and secure everything with screws.
Why It’s Great: Offers larger storage space and a sturdy design that can handle heavy loads.

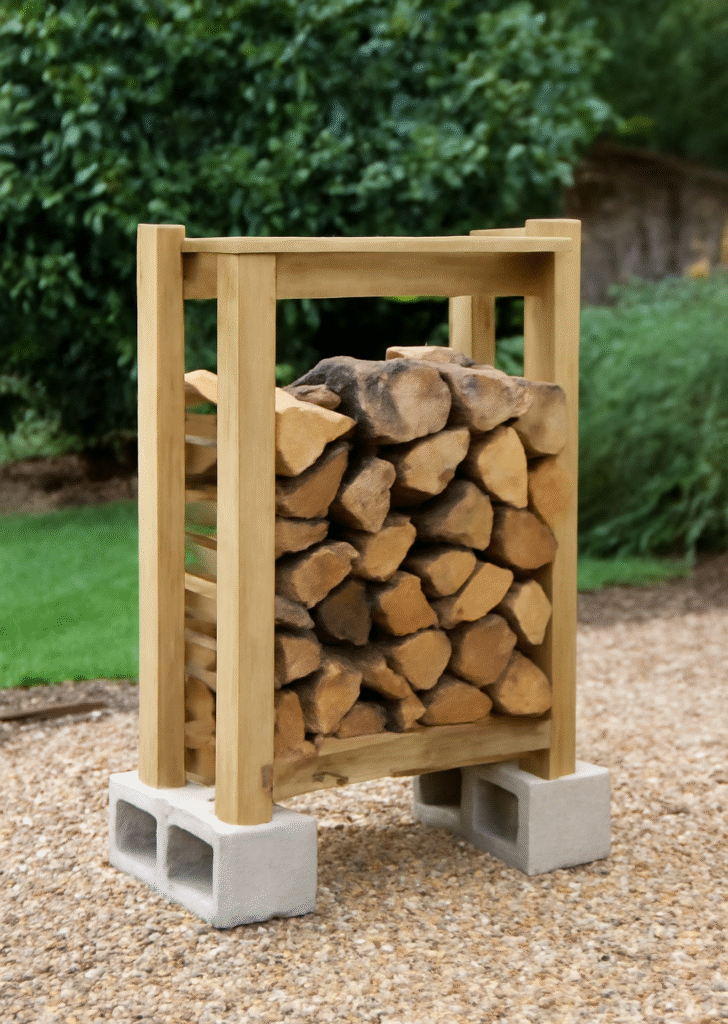

3. Firewood Rack Plan for Half Rick of Wood Built on Cinder Blocks
This budget-friendly plan uses cinder blocks to elevate the firewood rack, keeping your wood off the ground while providing easy airflow. The overall dimensions are 51″ W x 49.5″ H x 16″ D, and it’s perfect for storing half a rick of wood.
Total Cost: $42.17
Material Needed: Four 8′ 2x4s, one 10′ 2×4, cedar fence pickets, cinder blocks, screws.
Assembly Plan:
- Step 1: Build four vertical frames using 2x4s and arrange them on cinder blocks.
- Step 2: Install cedar fence pickets for the top shelf and add additional shelving for smaller logs.
- Step 3: Secure the frames and shelves with screws.
Why It’s Great: A sturdy design with the added benefit of a top shelf for kindling and small pieces of wood.

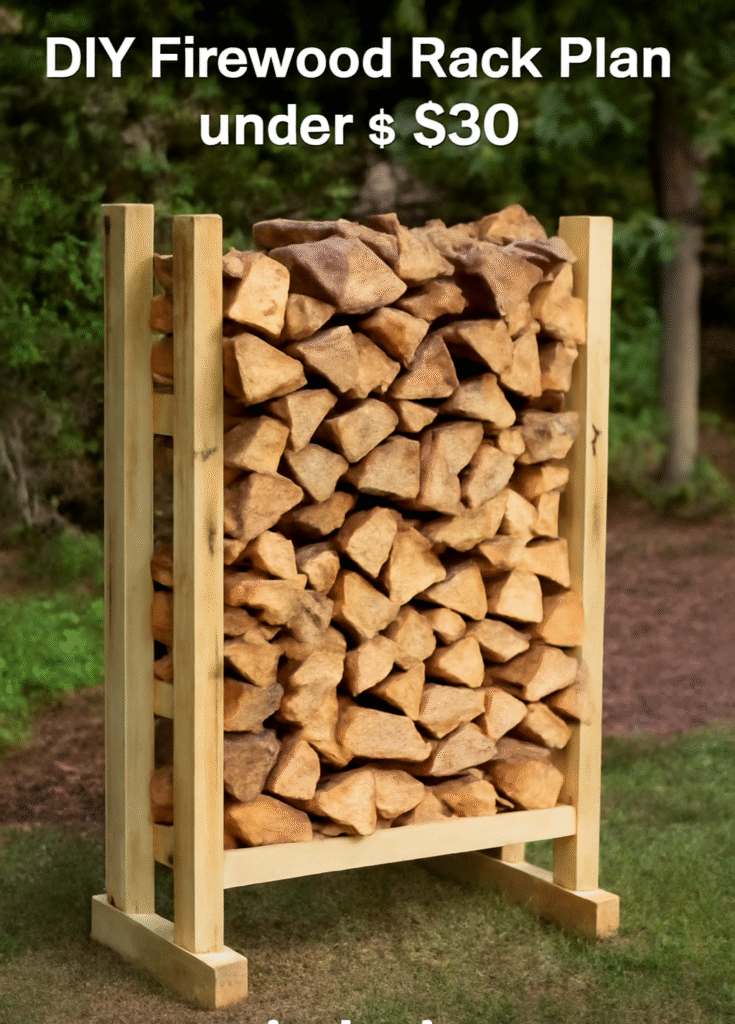

4. DIY Firewood Rack Plan Under $30
This plan is the simplest and most affordable, with a total cost of just under $30. It uses only five 2x4s and one 6′ 2×4 to create a firewood rack with a middle support. The dimensions are 6′ W x 49.5″ H x 15″ D, making it perfect for storing up to three-quarters of a rick of firewood.
Total Cost: $29.42
Material Needed: Four 8′ 2x4s, one 6′ 2×4, screws.
Assembly Plan:
- Step 1: Assemble two vertical frames with the center legs included for additional support.
- Step 2: Attach eight cross braces (12″ Links) between the vertical frames.
- Step 3: Add the finishing touches with screws and support for the wood.
Why It’s Great: It’s quick, affordable, and provides sturdy storage for your firewood.
Recommended Tools for Building Your Firewood Rack
To build any of these firewood racks, you’ll need some basic woodworking tools. Here’s a list of tools that will make the job easier:
- Electric screwdriver: Essential for driving screws into the wood.
- Right angle tool (framing square): Used to keep the vertical pieces of the rack perfectly aligned.
- C-clamps: Used to hold the pieces together while you drive in screws.
- Pre-drilling tool: Helps prevent wood from cracking when you insert screws.
Screws: We recommend using #10 x 3″ long Yellow Zinc wood screws for durability. For easier driving, T-Star head screws are a better choice since they’re less likely to strip.
Outdoor glue: Adds extra stability to your firewood rack, especially for outdoor use.
Conclusion
These 4 free firewood rack plans offer practical, cost-effective ways to store your firewood, and the best part is that two of the plans are under $30! Whether you’re building a simple rack with just 2x4s or a larger, more robust design with 4x4s, these plans will help you keep your logs organized and easily accessible. All the designs are easy to follow, and with minimal tools and materials, you can have your firewood rack assembled in no time. Choose the plan that fits your needs and budget, and get started today!
